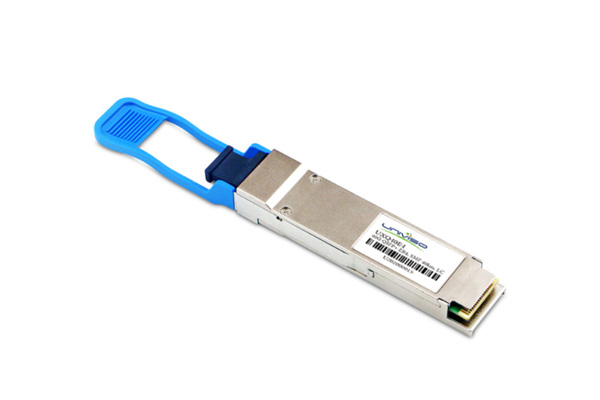

In the transition from 4K to 8K live production, the physical layer often becomes the most significant bottleneck. When fiber resources are limited—common in remote stadium links or aging urban infrastructure—the QSFP28 100G BIDI 20km transceiver offers a sophisticated solution by enabling full-duplex 100Gbps speeds over a single strand of single-mode fiber (SMF). This technical review examines the performance thresholds and implementation criteria for this pivotal optical technology.

The Architecture of "Double Density" Fiber ROI

Standard 100G-LR4 optics require two dedicated fibers for every link. For a Univiso aggregation hub receiving dozens of remote feeds, this dual-fiber requirement doubles leasing costs and complicates cable management. The 100G BIDI (Bidirectional) approach utilizes WDM (Wavelength Division Multiplexing) to split transmit and receive signals into distinct spectral windows, typically 1271nm and 1331nm.

20km Reach: The Critical Mid-Range Solution

While 10km modules are common, they lack the necessary power margin for complex urban fiber spans that include multiple patch panels and splices. Conversely, 40km ER4 modules are cost-prohibitive and power-hungry. The QSFP28 100G BIDI 20km serves as the "Golden Middle," providing enough optical budget to withstand an additional 2-3dB of connector loss—a reality in field-deployed broadcast kits—while maintaining a standard power envelope below 4.5W.

Signal Integrity and FEC Management

Unlike traditional 10G or 40G links, 100G BIDI relies on PAM4 modulation. This increases the sensitivity to reflections and chromatic dispersion. Univiso engineers emphasize that for a stable 20km link, the Host Forward Error Correction (FEC) must be configured correctly—typically KP4 FEC. Without FEC, the Pre-FEC Bit Error Rate (BER) will trigger link flaps under heavy video traffic loads.

Practical Impact on 8K Video Backhaul

At Univiso, we integrate these 100G BIDI solutions into our high-speed routing fabrics to support uncompressed 8K workflows. By utilizing the 20km BIDI standard, we enable broadcasters to set up remote production sites miles away from the central studio using a single rented fiber strand, ensuring visually lossless quality with zero frame drops—even across the most congested urban networks.
